Circle

Menu:	Draw Circle
Shortcut Keys:
Toolbar Icon:



The Circle command will allow you to draw a circle or ellipse on the design screen.  Before drawing a circle or ellipse, make sure you have chosen the correct layer assignment.

To draw a circle or ellipse:

1. Click one time with the left mouse button to begin the circle or ellipse.  Holding down the Shift key will draw a circle while releasing the key will draw an ellipse.  The Anchor Point will be set at this location.

2. Move the cursor to a new location.  The angle and distance from the Anchor Point will be shown in the Status Bar at the bottom of the screen.

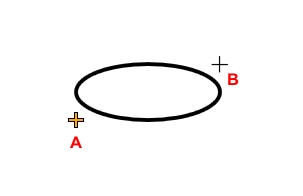

   Starting point A and ending point B.		Starting point A and ending point B.


   If you press and hold down the Ctrl key while drawing a circle or ellipse, the Anchor Point will become the center of the object.

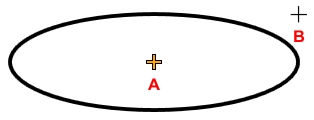

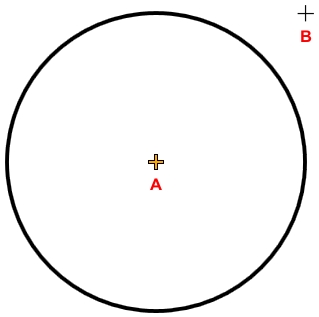

   Starting point A and ending point B.		Starting point A and ending point B.



3. Click to set the second and final point for the circle or ellipse.

Note:

• Pressing the Esc key before the second and final point is set will end the command.

• If the Polar Angle is turned on, the circle will "snap" to preset angles based on the Polar Angle setting.
