Horizontal Dimension

Menu:	Draw Horizontal Dimension
Toolbar Icon:

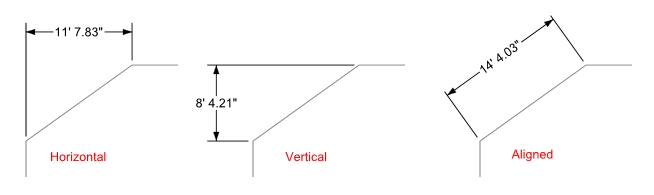

The Horizontal Dimension command will allow you to draw a dimension that aligns with the X-axis of the drawing screen.

To draw a horizontal dimension:

1. Select the Horizontal Dimension command from the Draw menu or click on the toolbar icon.

2. Click a point for the start of the distance to be measured.

3. Click a second point for the end of the distance to be measured.

4. Drag the mouse to the desired location for the dimension text and click a third point to complete the command.





Notes:

• You can set values for all dimension parts and the color assignments in the Options command on the Dimensions tab.

• Select the Display Format and Precision in the Options command on the General tab.
